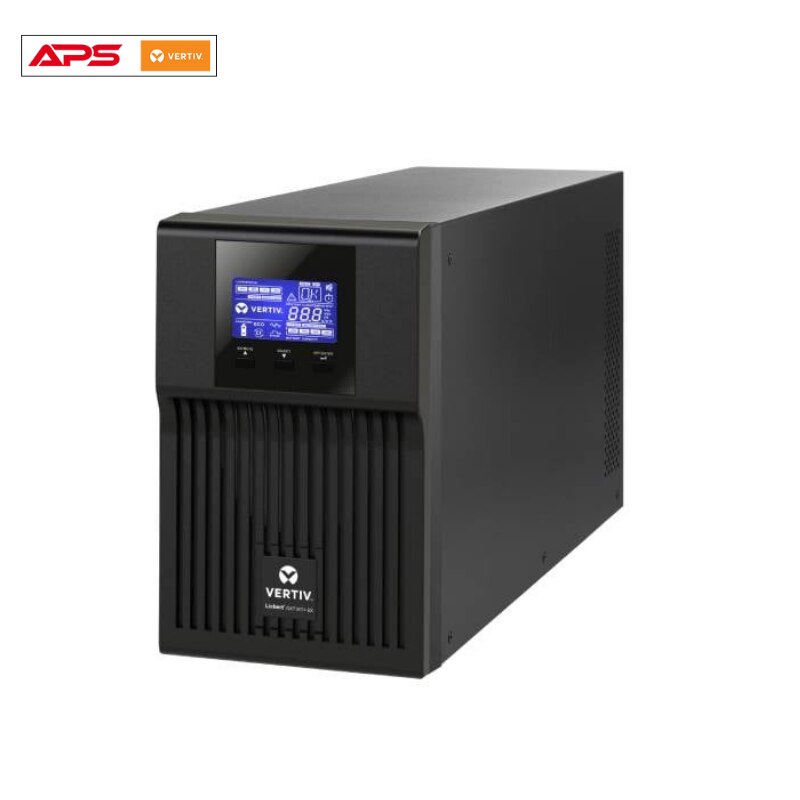

Vertiv™ Liebert® GXT MT+ EX 3kVA – High-Efficiency Online UPS for Critical Power Protection

The Vertiv™ Liebert® GXT MT+ EX 3kVA is a high-performance double-conversion online UPS with advanced DSP control and IGBT-based rectification. Offering up to 92% efficiency, a 0.9 output power factor, and intelligent battery charging, it ensures clean and continuous power for mission-critical environments.

🔧 Key Features

IGBT-based rectifier for efficient and reliable performance

DSP control technology for precision and stability

Intuitive LCD display for system status and diagnostics

Double conversion efficiency up to 92%

Active input power factor correction (0.99)

0.9 output power factor

Wide input voltage range (110–280 VAC)

Configurable output voltage (208/220/230/240 VAC)

Generator compatible (40–70 Hz input frequency)

4-stage extendable battery charging system

Adjustable charging current (1/2/4/6 Amps)

50/60 Hz automatic frequency converter mode

Built-in over-voltage cut-off device (OVCD)

📐 Technical Specifications

Capacity: 3kVA

Input Voltage Range: 110 – 280 VAC

Output Voltage: 208–240 VAC (Configurable)

Output Power Factor: 0.9

Efficiency: Up to 92%

Frequency Range: 40–70 Hz (Generator Compatible)

Battery Charging: 1/2/4/6 Amps (Adjustable)

Display: Intuitive LCD

Technology: DSP control, IGBT-based rectifier
