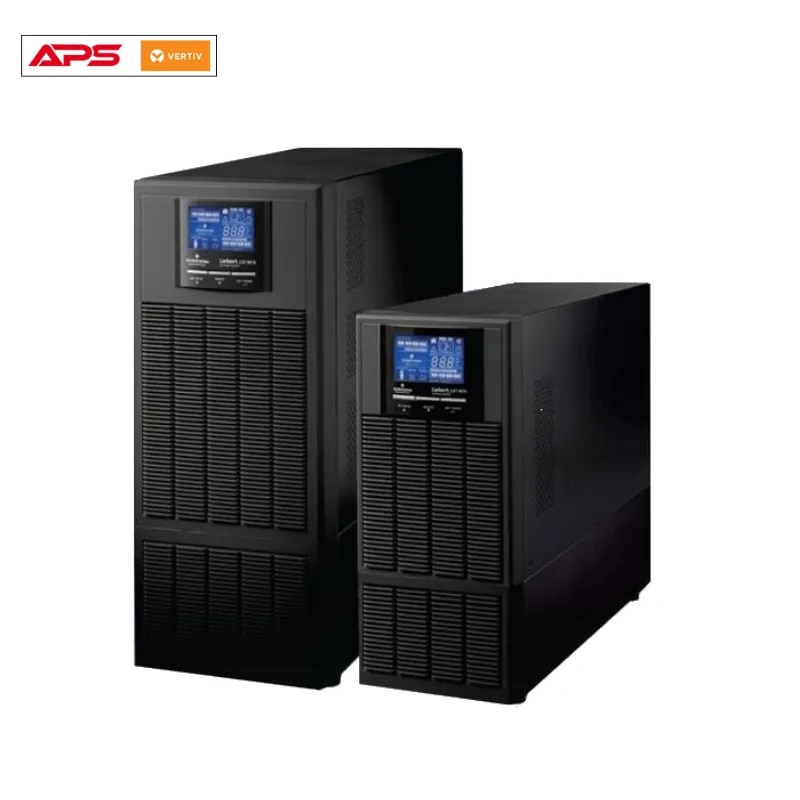

Liebert® GXT MTX+ 6kVA – Transformer-Based Online UPS for Heavy-Duty Applications

The Liebert® GXT MTX+ 6kVA is a transformer-based double-conversion online UPS engineered for power-intensive modern electronics. Featuring DSP control, wide input voltage tolerance, and configurable battery setup, it delivers reliable performance with high efficiency and intelligent monitoring capabilities.

🔧 Key Features

IGBT-based rectifier for stable and efficient power delivery

True online double-conversion with DSP control

Graphical LCD for real-time data, alarms, and diagnostics

Double conversion efficiency up to 84%

Eco mode efficiency up to 94%

Active input power factor correction (0.99)

0.8 output power factor

Wide input voltage range (110–300 VAC)

Adjustable battery configuration: 16/18/20 units

Digital charger with adjustable current (0.5–6 Amps) via LCD

3-stage extendable charging system

50/60 Hz automatic frequency converter mode

RS232/USB standard ports; SNMP/RS485/Dry Contact (optional)

Supports remote monitoring and multiple server shutdown

CE and RoHS compliant

📐 Technical Specifications

Capacity: 6kVA

Input Voltage Range: 110 – 300 VAC

Output Voltage: 230 VAC

Output Power Factor: 0.8

Efficiency: Up to 84% (Double Conversion), 94% (Eco Mode)

Battery Configuration: 16/18/20 units (Adjustable)

Charging Current: 0.5–6 Amps (Adjustable via LCD)

Display: Graphical LCD

Communication: RS232, USB, SNMP (Optional), RS485, Dry Contact

Compliance: CE, RoHS

Technology: Transformer-based, DSP controlled
