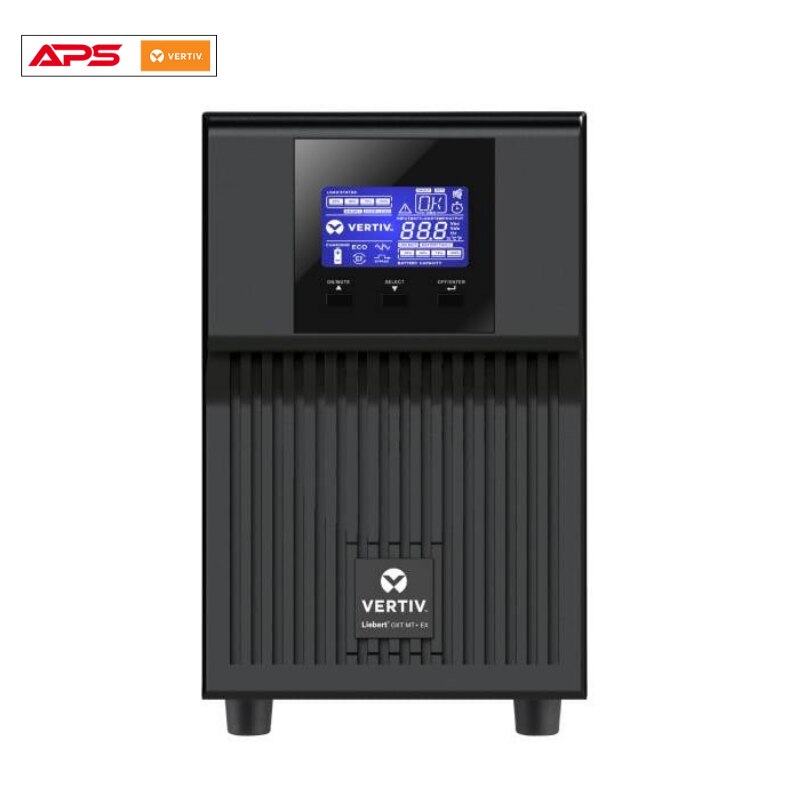

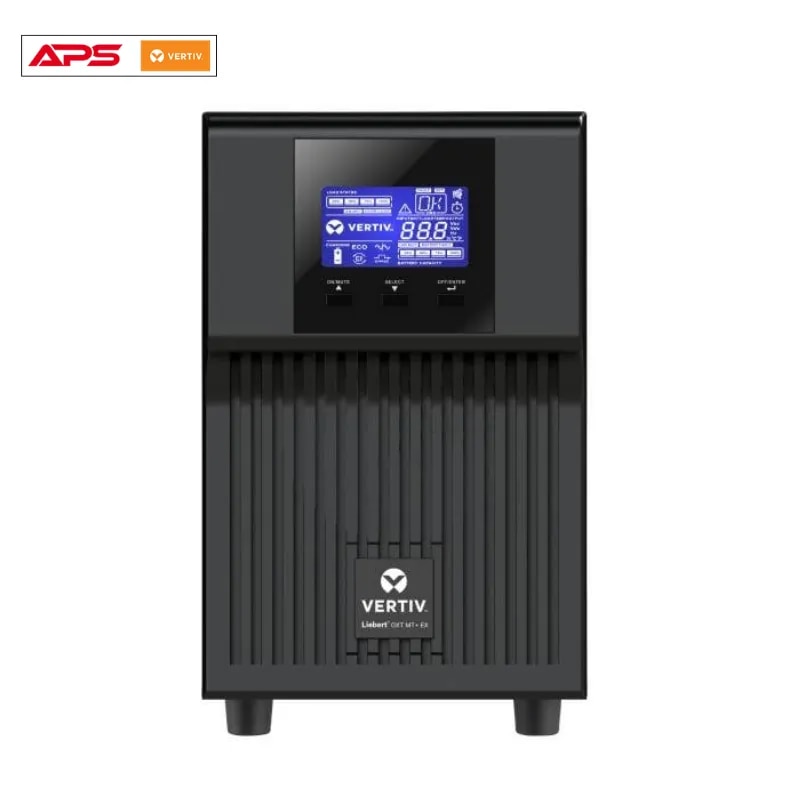

Vertiv™ Liebert® GXT MT+ EX 1kVA – High-Efficiency Online UPS for Essential Systems

The Vertiv™ Liebert® GXT MT+ EX 1kVA is a true online double-conversion UPS featuring advanced DSP control and IGBT-based rectification. With up to 92% efficiency, a 0.9 output power factor, and intelligent battery charging, it ensures reliable power for critical loads across IT, industrial, and commercial environments.

🔧 Key Features

IGBT-based rectifier for reliable performance

DSP control technology for precision and stability

Wide LCD display for system insights and fault alerts

Double conversion efficiency up to 92%

Active input power factor correction (0.99)

0.9 output power factor

Wide input voltage range (110–280 VAC)

Configurable output voltage (208/220/230/240 VAC)

Generator compatible (40–70 Hz input frequency)

4-stage extendable charging system

Adjustable battery charging current (1/2/4/6 Amps)

50/60 Hz automatic frequency converter mode

Inbuilt over-voltage cut-off device (OVCD)

📐 Technical Specifications

Capacity: 1kVA

Input Voltage Range: 110 – 280 VAC

Output Voltage: 208–240 VAC (Configurable)

Output Power Factor: 0.9

Efficiency: Up to 92%

Frequency Range: 40–70 Hz (Generator Compatible)

Battery Charging: 1/2/4/6 Amps (Adjustable)

Display: Intuitive LCD

Technology: DSP control, IGBT-based rectifier
