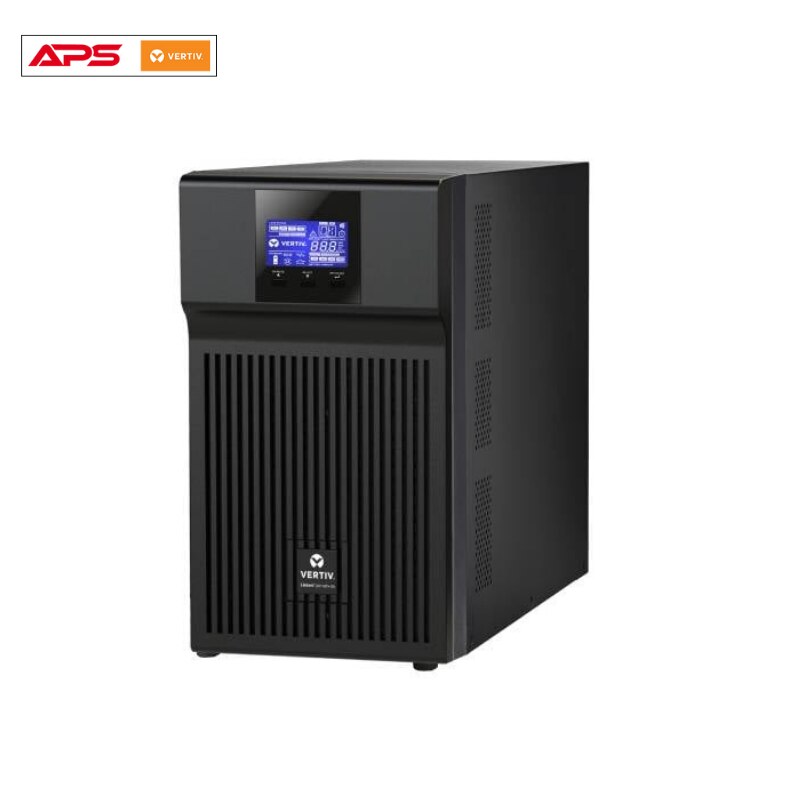

Liebert® GXT MT+ EX 2kVA – High-Capacity Online UPS for Mission-Critical Systems
Description
The Liebert® GXT MT+ EX 2kVA is a true double-conversion online UPS designed for reliable power delivery in critical environments like data centers, banking, VOIP, and industrial setups. With total isolation from the mains and intelligent battery management, it offers seamless uptime and advanced protection for sensitive equipment.
🔧 Key Features
IGBT-based rectifier for high performance and stability
True online double-conversion with DSP control
Graphical LCD for system status, alarms, and diagnostics
Up to 90% conversion efficiency
Active input power factor correction (0.99)
0.8 output power factor
Wide input voltage window (110–280 VAC)
Configurable output voltage (200/208/220/230/240 VAC)
Generator compatible (40–70 Hz input frequency)
4-stage extendable charging system
Adjustable battery charging current (1/2/4/6 Amps)
50/60 Hz automatic frequency converter mode
Standard RS232/USB ports, slot for SNMP/RS485/Dry Contact
Built-in over-voltage cut-off device (OVCD)
📐 Technical Specifications
Capacity: 2kVA
Input Voltage Range: 110 – 280 VAC
Output Voltage: 200–240 VAC (Configurable)
Output Power Factor: 0.8
Efficiency: Up to 90%
Frequency Range: 40–70 Hz (Generator Compatible)
Battery Charging: 1/2/4/6 Amps (Adjustable)
Interfaces: RS232, USB, SNMP (Optional), RS485, Dry Contact
Display: Graphical LCD
Technology: IGBT-based rectifier, DSP control
