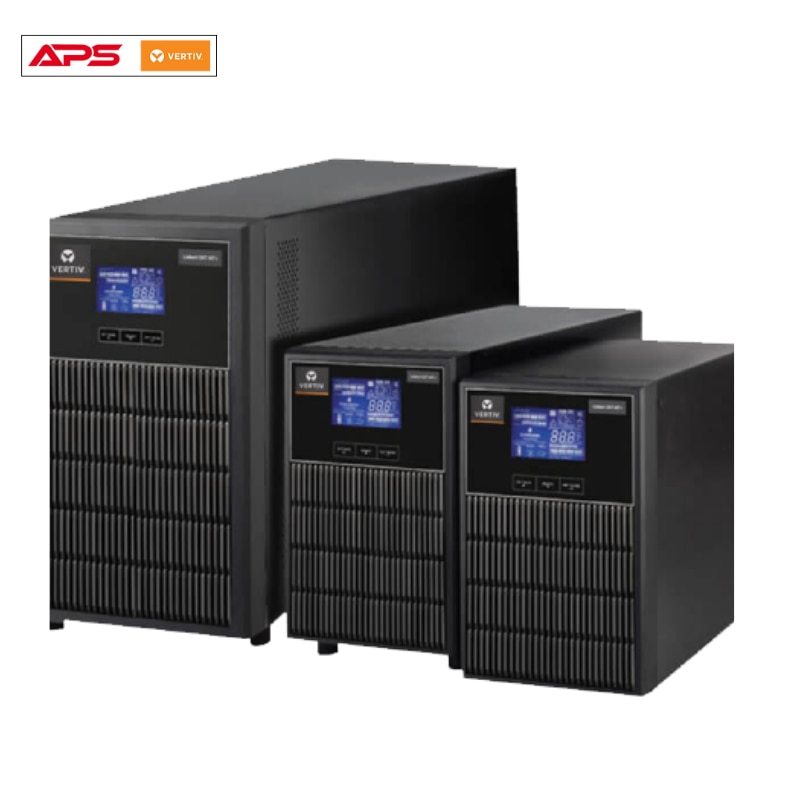

Liebert® GXT MT+ CX 2kVA – Online UPS for High-Availability Applications

The Liebert® GXT MT+ CX 2kVA is a robust double-conversion online UPS engineered for uninterrupted power in critical environments like data centers, VOIP systems, and financial institutions. With DSP control, IGBT-based rectifier, and extended battery management, it ensures maximum uptime and equipment protection.

🔧 Key Features

IGBT-based rectifier for enhanced reliability

True online double-conversion with DSP control

Graphical LCD for system status and fault alerts

Up to 90% double-conversion efficiency

Active input power factor correction (0.99)

0.8 output power factor

Wide input voltage range (110–280 VAC)

Configurable output voltage (200/208/220/230/240 VAC)

Generator compatible (40–70 Hz frequency range)

4-stage extendable charging for better battery life

Adjustable charging current (1/2/4/6 Amps)

50/60 Hz automatic frequency converter mode

RS232/USB standard interfaces, optional SNMP/RS485/Dry Contact

Built-in over-voltage cut-off device (OVCD)

📐 Technical Specifications

Capacity: 2kVA

Input Voltage Range: 110 – 280 VAC

Output Voltage: 200–240 VAC (Configurable)

Output Power Factor: 0.8

Efficiency: Up to 90%

Frequency Range: 40–70 Hz (Generator Compatible)

Battery Charging: 1/2/4/6 Amps (Adjustable)

Interfaces: RS232, USB, SNMP (Optional), RS485, Dry Contact

Display: Graphical LCD

Technology: IGBT-based rectifier, DSP control
