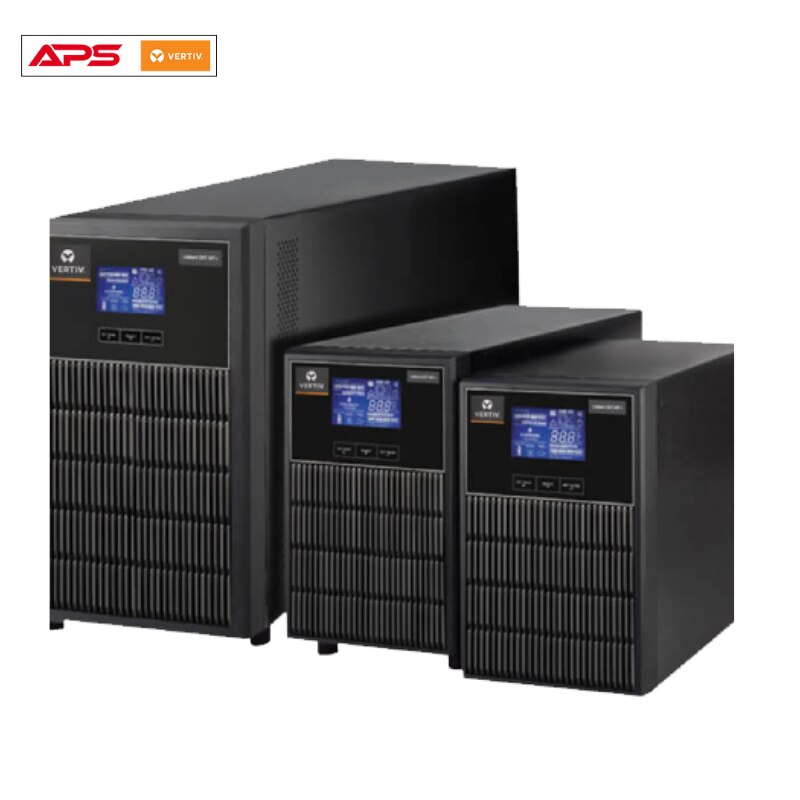

Liebert® GXT MT+ CX 1kVA – Online UPS for Critical Power Protection

The Liebert® GXT MT+ CX 1kVA is a true double-conversion online UPS designed for data networks, small data centers, VOIP setups, and sensitive electronic equipment. With DSP control, wide voltage tolerance, and intelligent battery management, it ensures uninterrupted power in demanding environments.

🔧 Key Features

IGBT-based rectifier for high performance and reliability

True online double-conversion with DSP control

Graphical LCD for UPS status, alarms, and fault diagnostics

Up to 90% double-conversion efficiency

Active input power factor correction (0.99)

0.8 output power factor

Wide input voltage window (110–280 VAC)

Configurable output voltage (200/208/220/230/240 VAC)

Compatible with generators (40–70 Hz frequency range)

4-stage extendable charging design

Adjustable battery charging current (1/2/4/6 Amps)

50/60 Hz frequency converter mode

RS232/USB interface with slot for SNMP, RS485, Dry Contact

Built-in over-voltage cut-off device (OVCD)

📐 Technical Specifications

Capacity: 1kVA

Input Voltage Range: 110 – 280 VAC

Output Voltage: 200–240 VAC (Configurable)

Output Power Factor: 0.8

Efficiency: Up to 90%

Frequency Range: 40–70 Hz (Generator Compatible)

Battery Charging: 1/2/4/6 Amps (Adjustable)

Interfaces: RS232, USB, SNMP (Optional), RS485, Dry Contact

Display: Graphical LCD

Technology: IGBT-based rectifier, DSP control
